AMSOIL Signature Series
0W-30 Synthetic Motor Oil (SSO)

See Pricing Information
or Place an Order
Package sizes include:
1-Quart Bottle
1-Quart Bottles (case of 12)
1-Gallon Bottle
1-Gallon Bottles (case of 4)
30-Gallon Drum
55-Gallon Drum
PRODUCT
DESCRIPTION AMSOIL Signature Series 0W-30
Synthetic Motor Oil is the industry benchmark in lubrication
technology. Engineered with the world’s finest synthetic base
oils and high performance additives, AMSOIL Signature Series
0W-30 is designed for those who demand the absolute best in
motor oil performance. The exclusive “extended drain”
formulation delivers superior engine protection and maximum
fuel economy. AMSOIL Signature Series 0W-30 is a premium grade
synthetic motor oil that exceeds the requirements of modern,
high-performance engines and older engines. It replaces other
0W-30, 5W-30 and 10W-30 motor oils and consistently outperforms
competitive conventional and synthetic motor oils.
AMSOIL, the leader in
automotive synthetic lubrication, produced the world’s first
API qualified synthetic motor oil in 1972. Trust the extensive
experience of AMSOIL The First in Synthetics® to do the best
job protecting your engine.
Extends Drain
Intervals AMSOIL
Signature 0W-30 Synthetic Motor Oil lasts much longer in
service than conventional oils. Its unique synthetic
formulation and long drain additive system resist oxidation and
neutralize the acids that shorten the service life of other
oils. AMSOIL Signature Series 0W-30 delivers the best possible
engine protection, cleanliness and performance over extended
drain intervals, reducing vehicle maintenance and waste oil
disposal costs.
Maximizes Fuel
Efficiency
The lightweight molecular structure of
AMSOIL Signature Series 0W-30 Synthetic Motor Oil reduces
energy loss from the “drag” common to high viscosity oils. It
is fortified with additives that enhance its friction-reducing
properties to help further improve fuel efficiency.
Reduces
Wear
AMSOIL Signature Series 0W-30 Synthetic
Motor Oil contains specialized anti-wear technology. Its
durable, high temperature film strength effectively separates
metal surfaces to reduce wear even under the most grueling

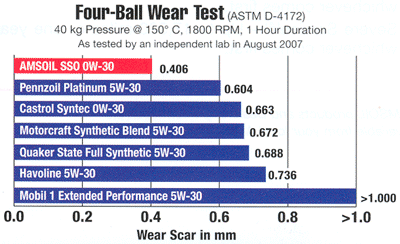

conditions. Tests prove that AMSOIL Signature Series 0W-30
provides better protection against wear than other motor oils
(see graph). AMSOIL Signature Series 0W-30 helps engines last
longer.

Resists Heat,
Reduces Oil Consumption and Emissions
AMSOIL Signature Series 0W-30 Synthetic
Motor Oil is thermally stable with a strong resistance to high
temperature volatility (burn-off). It is heavily fortified with
detergent and dispersant additives designed to prevent sludge
deposits and keep engines clean. Low volatility and clean
operation reduce oil consumption and emissions.
Provides
Outstanding Cold Flow Properties
Unlike conventional oils, AMSOIL Signature
Series 0W-30 contains no wax. Its exceptional -60°F cold flow
properties ease starting and reduce bearing wear.
APPLICATIONS
AMSOIL Signature Series 0W-30 Synthetic
Motor Oil is recommended for use in gasoline engines, diesel
engines (API CF, ACEA B5) and other applications requiring SAE
0W-30, 5W-30 or 10W-30 with the following worldwide
specifications:
• API SM/CF, SL, SJ
…
• ILSAC GF-4, 3 …
• ACEA A5/B5-04
• GM 4718M, 6094M
• Ford WSS-M2C929-A
• Daimler Chrysler MS-6395N
• VW 503.00
Mixing
AMSOIL
AMSOIL Signature Series 0W-30 is compatible
with conventional and synthetic motor oils. Mixing AMSOIL motor
oils with other oils, however, will shorten the oil life
expectancy and reduce the performance benefits. AMSOIL does not
support extended drain intervals where oils have been
mixed.
Aftermarket oil additives
are not recommended for use with AMSOIL motor oils.
Service
Life
AMSOIL Signature Series 0W-30 Synthetic
Motor Oil is recommended for extended drain intervals in
unmodified(1), mechanically sound(2) gasoline fueled vehicles
as follows:
• Normal Service(3) –
Up to 35,000 miles or one year, whichever comes first.
• Severe Service(4) – Up to 17,500 miles or one year,
whichever comes first.
• Replace AMSOIL Ea oil filter at the time of oil change up
to 25,000 miles or one year, whichever comes first (other
brands at standard OEM* intervals).
• In all non-gasoline fueled vehicle applications, extend
the oil change interval according to oil analysis or follow
the OEM* drain interval.
*OEM - Original Equipment
Manufacturer
(1) Engines operating
under modified conditions are excluded from extended drain
recommendations. Examples include the use of performance
computer chips; non-OEM approved exhaust, fuel or air induction
systems; and the use of fuels other than those recommended for
normal operation by the manufacturer.
(2) Mechanically sound
engines are in good working condition and do not, for example,
leak oil or consume excessive amounts, are not worn out, do not
overheat, do not leak anti-freeze and have properly working
emission control systems. AMSOIL recommends repairing
malfunctioning engines prior to the installation of AMSOIL
synthetic oils.
(3) Personal vehicles
frequently traveling greater than 10 miles (16km) at a time and
not operating under severe service.
(4) Turbo or supercharged
vehicles, commercial or fleet vehicles, extensive engine
idling, first and subsequent use of AMSOIL in vehicles with
over 100,000 miles, daily short trip driving less than 10 miles
(16km), frequent towing, plowing, hauling or dusty condition
driving.
AMSOIL Ea full-flow oil
filters are designed for extended drain intervals. They stop
smaller particles, flow more oil and last longer than regular
filters. For best performance, use AMSOIL Ea full-flow oil
filters.
HEALTH &
SAFETY
This product is not expected to cause
health concerns when used for the intended application and
according to the recommendations in the Material Safety Data
Sheet (MSDS). An MSDS is available upon request at 715-392-7101
or on our
website. Keep out of the
reach of children. Don't pollute. Return used oil to
collection centers.
|
TYPICAL
PHYSICAL PROPERTIES (revised
08/07)
|
|
AMSOIL Signature Series 0W-30
Synthetic Motor Oil (SSO)
|
|
Kinematic
Viscosity @ 100°C, cSt (ASTM
D445)
|
10.3
|
|
Kinematic
Viscosity @ 40°C, cSt (ASTM D445)
|
56.56
|
|
Viscosity Index
(ASTM D2270)
|
173
|
|
Cold Crank
Simulator Apparent Viscosity @ -35°C, cP
(ASTM D5293)
|
5927
|
|
Pour Point °C
(°F) (ASTM D92)
|
-51
(-60)
|
|
Flash Point °C
(°F) (ASTM D92)
|
230
(446)
|
|
Fire Point °C (°F) (ASTM
D92)
|
246
(475)
|
|
Four-Ball Wear Test (ASTM
D4172: 40kgf, 150°C, 1800 rpm, 1 hr) Scar
diameter, mm
|
0.406
|
|
Noack
Volatility (ASTM D5800) 250°C for 1 hour, %
weight loss
|
8.65
|
|
High
Temperature/High Shear Viscosity cP, X°C, X
s-1 (ASTM D4683)
|
3.2
|
|
Total Base
Number
|
13.2
|
|
