NEW!!! AMSOIL Absolute Efficiency
By-Pass Oil Filter Elements

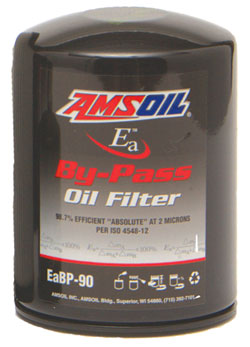

AMSOIL Absolute Efficiency By-pass Oil FilterEaBP Bypass Filters
AMSOIL EaBP Filters are high efficiency bypass filters that also remove soot. They provide the ultimate in protection against wear, oil degradation and corrosion.

See Pricing Information or Place an Order

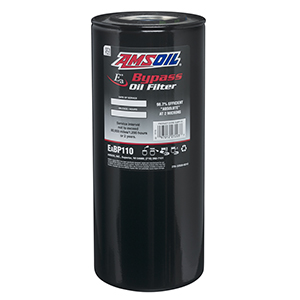

Three EaBP Filter Sizes Include:

EaBP90
EaBP100
EaBP110
EaBP120

PRODUCT DESCRIPTION
AMSOIL Ea By-Pass Oil Filters (EaBP) provide the best possible filtration protection against wear and oil degradation. Working in conjunction with the engine’s full-flow oil filter, AMSOIL Ea By-Pass Filters operate by filtering oil on a “partial-flow” basis. They draw approximately 10 percent of the oil pump’s capacity at any one time and trap the extremely small, wear-causing contaminants that full-flow filters can’t remove. The AMSOIL Ea By-Pass Filter typically filters all the oil in the system several times an hour, so the engine continuously receives analytically clean oil.

Higher Efficiency
AMSOIL EaBP Filters have an efficiency of 98.7 percent at two microns, compared to the AMSOIL BE Filters’ 98.6 percent efficiency at three microns. At normal operating RPMs the EaBP Filter will filter all of the oil in a typical five quart sump in less than 10 minutes.

Superior Construction
The superior construction of AMSOIL EaBP Filters provides better sealing and increased longevity along with superior corrosion resistance. AMSOIL EaBP Filters have a marine powder coated exterior. Their zinc-dichromate base plates increase rust protection, and they feature the same dimensions and threads as BE-90, BE-100 and BE-110, so they are compatible with existing AMSOIL bypass filter mounts. EaBP Filters have a nitrile HNBR gasket and an orange silicone anti-drain valve. The two stage pleated and layered cellulose/full synthetic media has an efficiency rating of 98.7 percent at two microns.

Longer Lasting
When used in conjunction with AMSOIL motor oil and an AMSOIL EaO or Donaldson Endurance™ filter, the EaBP should be changed every other full-flow filter change up to 60,000 miles. When used with other brands of motor oil or full-flow filters, the EaBP filter should be changed every other full-flow filter change. AMSOIL recommends using oil analysis when extending oil drain intervals.

Increased Oil Capacity
The increased fluid system capacity and filtration life provides improved oil cooling and ensures that equipment constantly runs on clean oil. Engine efficiency is increased and engine life is extended significantly.

Soot RemovalAMSOIL Wear Chart
AMSOIL has designed a new high-efficiency by-pass filter element that is also a soot removal device. AMSOIL Ea By-Pass Filters use a synthetic/cellulose sandwiched media. The inner layer of the element is composed of a highly efficient cellulose media covered with a full synthetic media outer layer. According to ISO 23556 testing, these filters remove 39 percent of soot contaminants less than one micron. Soot removal efficiency increases approximately 10 to 14 percent when the EaBP Filter is used in conjunction with a standard full-flow filter.





EaBP Vital StatisticsAMSOIL Bypass Oil FIlter Mount
AMSOIL will continue to offer three bypass filters: the EaBP90, EaBP100 and EaBP110. All vehicles and applications that can accept the AMSOIL BMK11, 12, 13, 15, 16, 17 and 18 filter mounts can use the EaBP Filters. Per AMSOIL bypass installation instructions, AMSOIL recommends bypass filters be mounted as close to vertical as possible. The filters are equipped with an anti-drain back valve in the event they are mounted at an angle.

Who Uses Bypass Filtration?
Bypass filtration comes standard on all heavy-duty turbo diesel engine applications from OEMs such as Cummins, Mack and many more. It has been available as standard equipment or as an option from OEMs like Caterpillar, John Deere, Case and others, but it isn’t just for heavy-duty diesel operators. Bypass filtration is a valuable commodity for anyone that wants to extend drain intervals and prolong engine life. It is also beneficial to vehicles that are exposed to high levels of contaminants on a regular basis.

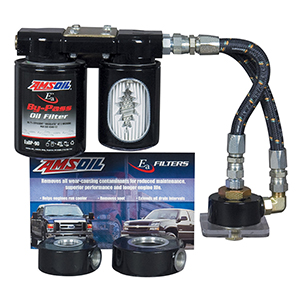

 AMSOIL Bypass Oil Filter Mounting Kits

Engineered for Outstanding Oil Filtration Efficiency

Filtration Systems Application Guide

See typical by-pass installations here

See the By-Pass Replacement Parts Lists

Frame Mount 1
Click for larger image
Frame Mount 2
Click for larger image
Under Hood Mount 1
Click for larger image
click to enlarge
Click for larger image

 Bypass Diagram

Click for larger image
